Datasheet
Important
The Olarm CONNECT requires an Olarm HUB and an active subscription. You can purchase a subscription through your installer, alarm response company, or directly in the Olarm APP.
I/O support coming soon
Olarm CONNECT only supports serial integration with select OPTEX detectors. The ability to integrate with OPTEX detectors without serial ports and other 3rd party devices will be available in future via a firmware over-the-air update.
Perfect for:
Residential properties
Homes, apartments, estates
Commercial buildings
Offices, retail, warehouses
Expanding existing
- Optex detector installations
Gates, doors, booms
- and access control systems
Multi-zone security systems
- requiring flexible I/O integration
Your Integration Advantage, Simplified:
Installs in minutes
QR code pairing via Olarm APP
Easy integration
Optex wireless detectors and 3rd party wireless detectors
4 x I/O ports
- Control gates, doors, boom gates, external relays, and more
Olarm HALO secure long range wireless technology
- Cover large properties up to 2 km
Multiple power source option via switch
- 2x CR123A batteries included or via DC in (5-30V)
Serial integration with Optex detectors (cable included)
- Full remote configuration support including walk test mode, detection sensitivity, and more via Olarm APP
Bluetooth firmware over-the-air
- Keep your device updated without service calls
Battery health
- Get notified when your battery is running low
Supported peripherals
Compatible with:
- Olarm HUB
- Connect and control existing devices: Gates, Doors, Booms, External Relays
Olarm branded Optex products with embedded CONNECT modules:
For the best integration experience and enhanced functionality, it is recommended to purchase Optex detectors directly from Olarm. Optex detectors supplied by Olarm are integrated with Olarm CONNECT and include the required serial interface, enabling enhanced configuration support and streamlined setup within the Olarm ecosystem.
- Olarm FitX
- Olarm SnapX
- Olarm 90XS
- Olarm 180X
- Olarm WingX

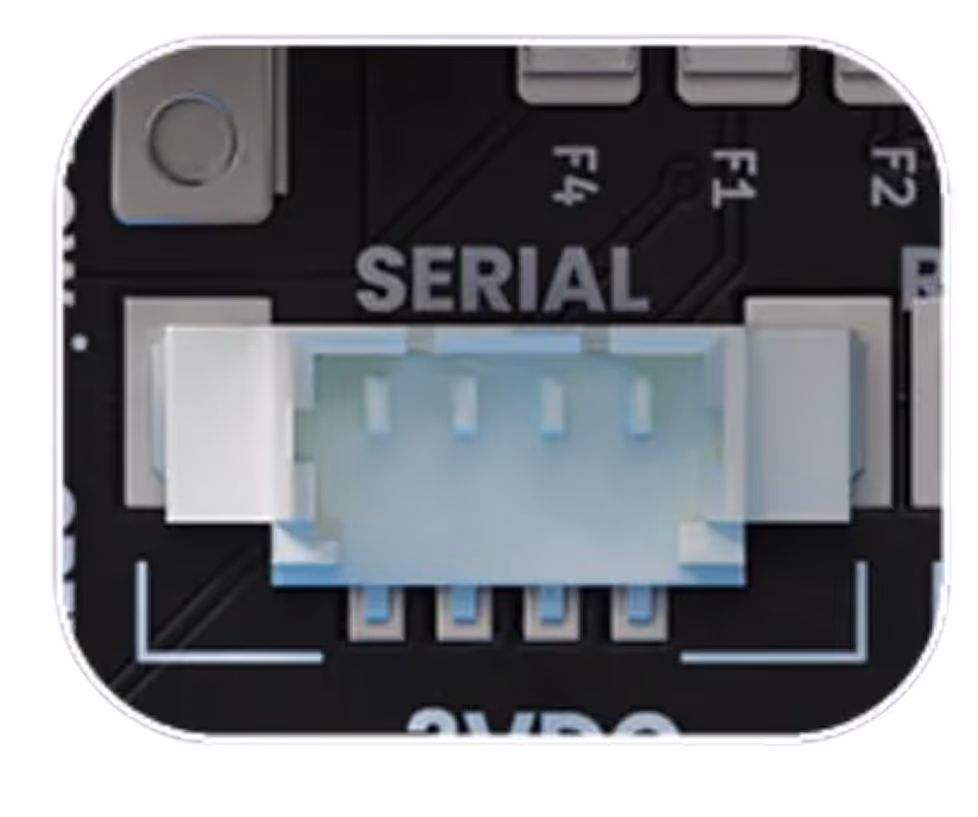

Optex Serial Integration Features
Seamless Optex detector integration - Olarm CONNECT provides direct serial integration with select Optex wireless detectors, enabling remote control and configuration through the Olarm APP.
Supported Optex Detectors and Settings Compatibility
The following Optex detectors are supported via Olarm CONNECT via a serial integration. Available settings depend on the detector model and its hardware capabilities.
Settings descriptions:
- LED Indicator — Enable/disable the LED indicator on the detector (ON/OFF)
- Walk Test — Enable walk test mode via the Olarm APP for detector setup and testing
- PIR — PIR sensitivity settings (LOW/MID/HIGH), pulse count, and immunity options
- Lens Masking — Anti-masking detection settings (enable/disable)
- Microwave — Microwave sensitivity and immunity settings
Olarm Product
Optex Model
LED Indicator On/Off
Walk Test
PIR Sensitivity
Lens Blocking (Anti-Masking)
Microwave Sensitivity
Olarm FitX
Olarm FitX with lens masking detection
Olarm WingX
Olarm WingX with lens masking detection
Olarm 90XS
Olarm 90XS with Microwave
Olarm 180X
Olarm 180X with lens masking detection
Olarm SnapX
Olarm SnapX with microwave
Detectors supplied by Olarm provide the most complete integration and configuration experience. Settings availability is Optex model dependent and based on detector hardware offering serial port connectivity.

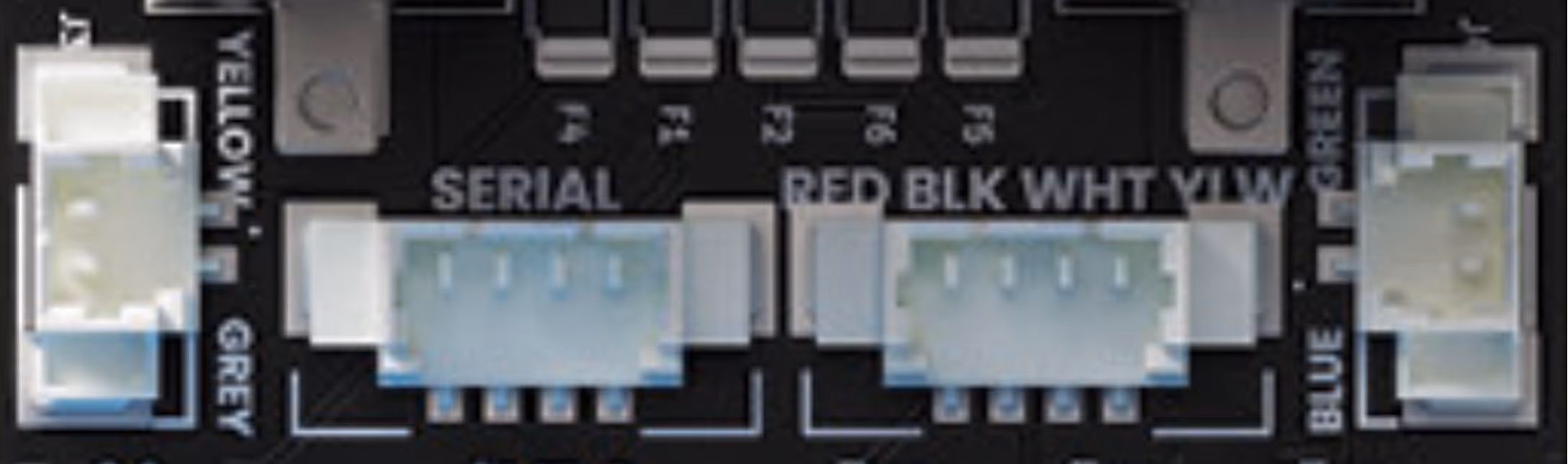

Integration with Optex Wireless Detectors Using Plug-in Connectors (coming soon)
Some Optex detectors deployed in the field do not include a dedicated serial port for wireless configuration or settings control via the Olarm APP. In these cases, Olarm CONNECT enables integration using Optex plug-in connectors that interface directly with the detector's internal connection points. These plug-in connectors allow Olarm CONNECT to supply power to the Optex detector and to monitor alarm and trouble signals, ensuring reliable operation within the Olarm system.
Power + Alarm / Alarm R
(for use with Optex Wireless Detector)
Alarm L
(for use with Optex Wireless Detector)
Trouble Port
(for use with Optex Wireless Detector)
Integration with Optex Wireless Detectors Using Plug-in Connectors
Detector
Plug-in connectors
BXS-R / BXS-RAM
Power and Alarm (Right), Alarm (Left), Trouble
VXI-R / VXI-RAM / VXI-RDAM
Power and Alarm, Trouble
VXS-RAM / VXS-R-DAM
Power and Alarm, Trouble
VXS-RAM / VXS-R-DAM
Power and Alarm, Trouble
WXI-R / WXI-RAM
Power and Alarm (Right), Alarm (Left), Trouble
WXS-RAM / WXS-RDAM
Power and Alarm (Right), Alarm (Left), Trouble
General Purpose I/O Ports (coming soon)
Automate your security system - Olarm CONNECT's 4 configurable I/O ports let you connect external devices and create automated responses. Control gates, doors, booms, and more with flexible I/O integration.
Number of Ports
4 configurable screw-terminal I/O ports
Voltage Range
DC in (7-30V), 3V out
I/O Voltage Tolerance
0-20 VDC
Input Tolerance
Low: 0V - 1V DC, High: 3.3V - 15V DC
Max Open Drain Current
1 mA (max)
Connection Type
Screw terminal ports
Applications
4 configurable I/O ports - Automate gates, control doors, activate booms, or connect external devices for comprehensive security automation.
Common Use Cases:
- Gates Control - Automatically open/close gates when triggered
- Doors Control - Monitor and control door access
- Booms Control - Manage boom gate operations
- Panic Buttons - Trigger immediate, actionable alerts from panic inputs
- External Sirens - Trigger an external siren for an audible deterrent
- External LED Indicators - Visual status indicators for system state
- External Relays - Control additional security peripherals
- Detector Takeovers - Integrate third-party wireless detectors via I/O ports
Power Recommendation: For I/O port applications (gates, sirens, automation), we recommend using external DC power (5-30V) instead of battery-only mode for instant response and reliable operation.
System Capabilities
I/O Ports
4 configurable screw-terminal ports (DC in 7-30V, 3V out)
Power Options
2x CR123A battery (up to 2 years) or external DC power (7-30V)
DC Output
Selectable 3V for powering connected devices
Optex Integration
Serial integration with Optex detectors (cable included)
Wireless Range
2 km line-of-sight via Olarm HALO - covers large properties without repeaters
Walk Test Mode
Enabled via Olarm APP
Settings Control
Remote sensitivity and key settings updates via Olarm APP
Multi-Sensor Options
Accelerometer (A variant), Temperature & Humidity sensor (H variant)
Battery Life
Up to 2 years under typical conditions (actual life depends on frequency and environmental factors)
Current Consumption
100mA (when using DC IN)
LED Indicators
The Olarm KEY features LED indicators that provide clear, real-time feedback.
LED Pattern
Signal
Insight
🔵 … 🔵 … 🔵
⚪ … 🔵 … ⚪
🔵 🔵
🔴
🔴 🔴 🔴
🟣 🔵
🔵
🔵 🔵 🔵 (All LEDs)
Installation & Controls
Installs in minutes via Olarm APP, configures easily:
Easy pairing
QR code scanning via Olarm APP - pair in seconds
Easy to mount
Velcro mounting inside Optex detector enclosures
Replaceable batteries
2x CR123A batteries, ensure correct polarity
Power source selection
Multiple power source options via switch on device
Screw terminal ports
4 x configurable I/O ports with screw terminals
LED status indicator
Visual feedback for pairing, faults, and battery status
LED Indicators
The Olarm CONNECT features an LED status indicator that provides clear, real-time feedback about device status. The LED uses color and pattern to communicate different states—no need to check the app for basic status.
LED Pattern
Signal
Insight
🔵 … 🔵 … 🔵
🟠
🔴
Signals Supported via Olarm HUB
Contact ID
Supported (via Olarm HUB)
SIA DC09
Coming soon
LED Indicators
The Olarm KEY features LED indicators that provide clear, real-time feedback.
LED Pattern
Signal
Insight
🔵 … 🔵 … 🔵
⚪ … 🔵 … ⚪
🔵 🔵
🔴
🔴 🔴 🔴
🟣 🔵
🔵
🔵 🔵 🔵 (All LEDs)
Mechanical specifications
Packaged Dimensions
136 x 98 x 32
Packaged Weight
104 g
Enclosure Material
Durable ABS plastic
Status Indicator
LED status indicator for device state feedback
Battery Holder
2 x CR123A cells
Power Switch
Multiple power source selection
Mounting Options
Velcro mounting (hook & loop strip included)
LED Indicators
The Olarm KEY features LED indicators that provide clear, real-time feedback.
LED Pattern
Signal
Insight
🔵 … 🔵 … 🔵
⚪ … 🔵 … ⚪
🔵 🔵
🔴
🔴 🔴 🔴
🟣 🔵
🔵
🔵 🔵 🔵 (All LEDs)
Internal battery
Power that lasts - Get up to 2 years of battery life with the pre-installed CR123A batteries.
Battery Type
2x CR123A 3.0V, 1700 mAh capacity (non-rechargeable)
Battery Life
Up to 2 years under typical conditions - actual life depends on frequency and environmental factors
Power Monitoring
Alerts for mains power loss and restoration
Protection
ESD & battery reverse polarity
Battery Replacement
- Standard CR123A batteries available at most retailers
- Ensure correct polarity when inserting (+ symbol visible)
- Low battery warning provides advance notice via LED and Olarm APP
External DC Power Input (coming soon)
DC Input Range
5-30V DC
DC Output
3V DC (selectable, for powering connected devices)
Current Consumption
100mA (when using DC IN)
Power Source Selection
Via switch on device
When to Use DC Power:
External DC power (5-30V) is recommended when:
- Using I/O ports for automation (gates, sirens, lights)
- Instant response required for commands. for example Door Open (no check-in delay)
- Continuous operation is required without battery replacement concerns
- High-traffic entry points with frequent activations
Battery-Only Mode:
When using battery-only power, Olarm ENTRY only receives commands from the HUB at regular intervals checks in with the HUB at regular intervals. This conserves battery life but means commands from the HUB may be delayed. For most security monitoring applications, this delay is acceptable. Please note zone activation and tamper alerts are sent to the HUB immediately.
Battery Safety: Keep new and used batteries away from children. Dispose of used batteries according to local regulations.
Operating conditions
Temperature
–15 to 35°C
Relative Humidity
0 - 90% RH (non-condensing)
Radio / wireless technologies
Connectivity
Antenna Type
Tamper proof internal
Bluetooth
BLE 5
Olarm HALO
Olarm's proprietary long range and low power secure communication protocol
Type Approval Note: Type Approval may be required in your country/region. Please contact our sales team to confirm regional support.
Olarm HALO - Wireless Protocol
Olarm HALO is the invisible thread that keeps all your security devices connected over long distances with minimal power usage.
Modulation
LoRa
Frequency Range
863-870
MHz
Bandwidth
125 kHz
Range
Up to 2 km (line of sight)
Key Features
Secure, long-range encrypted wireless technology
Continuous device health monitoring
Automatically monitors for tampering, battery, and signal issues
Superior resistance to interference & signal jamming
Constant connection with reliable check-ins
Bluetooth Low Energy (BLE)
Standard
Bluetooth 5.0 Low Energy
Purpose
Firmware updates
Antenna Type
Tamper resistant internal
Data Rates
Up to 2 Mbps (Bluetooth 5.0 LE 2M PHY), 1 Mbps standard BLE
Tx Power
Up to +6 dBm
Rx Sensitivity
Approximately -96 dBm at 1 Mbps
Range
Up to 100m typical
Encryption
AES-128
Security & Encryption
Encryption
AES-128
Cloud Communication
All communications encrypted via Olarm HUB
Data Transmission
Secure end-to-end
Management & Configuration
Pairing & Device Configuration
Remotely via Olarm APP
I/O Configuration
Remotely via Olarm APP & Olarm COMMAND CENTRE
Optex Settings
Remote sensitivity and key settings updates via Olarm APP
Firmware Upgrades
Remotely via the Olarm APP and a secure Bluetooth connection
Serial Configuration
Auto-configured by CONNECT
Product Variations
CON LBAH
LoRa, Bluetooth, Accelerometer, Temperature & Humidity sensor
CON LBA
LoRa, Bluetooth, Accelerometer
CON LBH
LoRa, Bluetooth, Temperature & Humidity sensor
CON LB
LoRa, Bluetooth
Included in the box
- 1 x Olarm CONNECT
- 1 x Optex integration serial cable
- 2 x CR123A battery
- 1 x hook & loop strip (Velcro mounting)
Certifications, accreditations & test reports
Olarm CONNECT meets international safety, security, and wireless communication standards. These certifications ensure the device is safe to use, won't interfere with other devices, and meets regulatory requirements in your region.
Type Approval
ICASA TA-2025/2247
Safety & Health
- EN IEC 62368-1:2020+A11: (2020)
- IEC 62368-1: (2014)
- UN38.3 (CR123A Battery)
RF Exposure / SAR
EN 62311:2022
Electromagnetic Compatibility (EMC)
- ETSI EN 301 489-1: V2.2.3 (2019-11)
- ETSI EN 301 489-3: V2.1.1 (2019-03)
- ETSI EN 301 489-17: V3.2.4 (2020-09)
Radio Spectrum Efficiency
- ETSI EN 300 220-1: V3.1.1 (2017-02)
- ETSI EN 300 220-2: V3.2.1 (2018-06)
- ETSI EN 300 328: V2.2.2 (2019-07)
