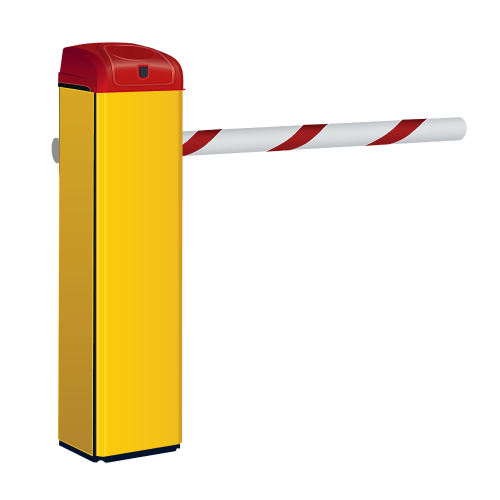

Centurion SECTOR

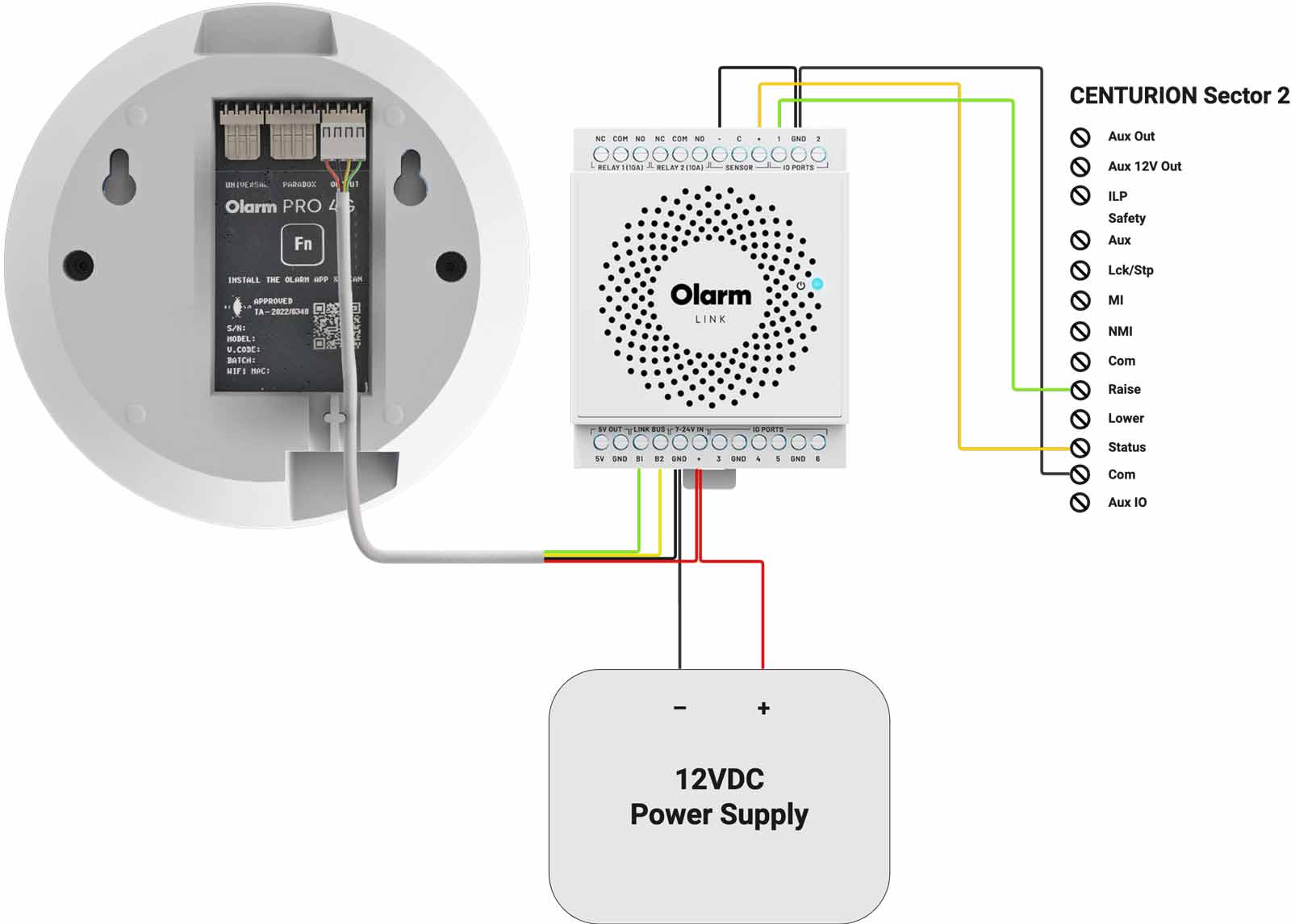

Connecting to Centurion Sector

Connecting to an external power source

Setting up Olarm APP

Compatibility requirements

The Olarm APP must be version 1.3.9 and upwards.

General setup

Upon first install, the Olarm communicator might appear to be in a Problem state. This means that you will need to first set up the connection type for your Olarm communicator.

1. From the Device list dropdown under Offline devices, tap on the device that is in a Problem state

1. This takes you to the Device setup page
2. From the Olarm PRO setup dropdown, confirm your connection type by choosing [Yes] or [No]
   • Select [Yes] - if the Olarm communicator will be connected to an alarm panel or electric fence (energizer)
   • Select [No] - if the Olarm communicator will only be used for your peripherals
3. Any Olarm LINKs detected for your Olarm communicator can be accessed from Linked peripherals

Configuring your Olarm LINK

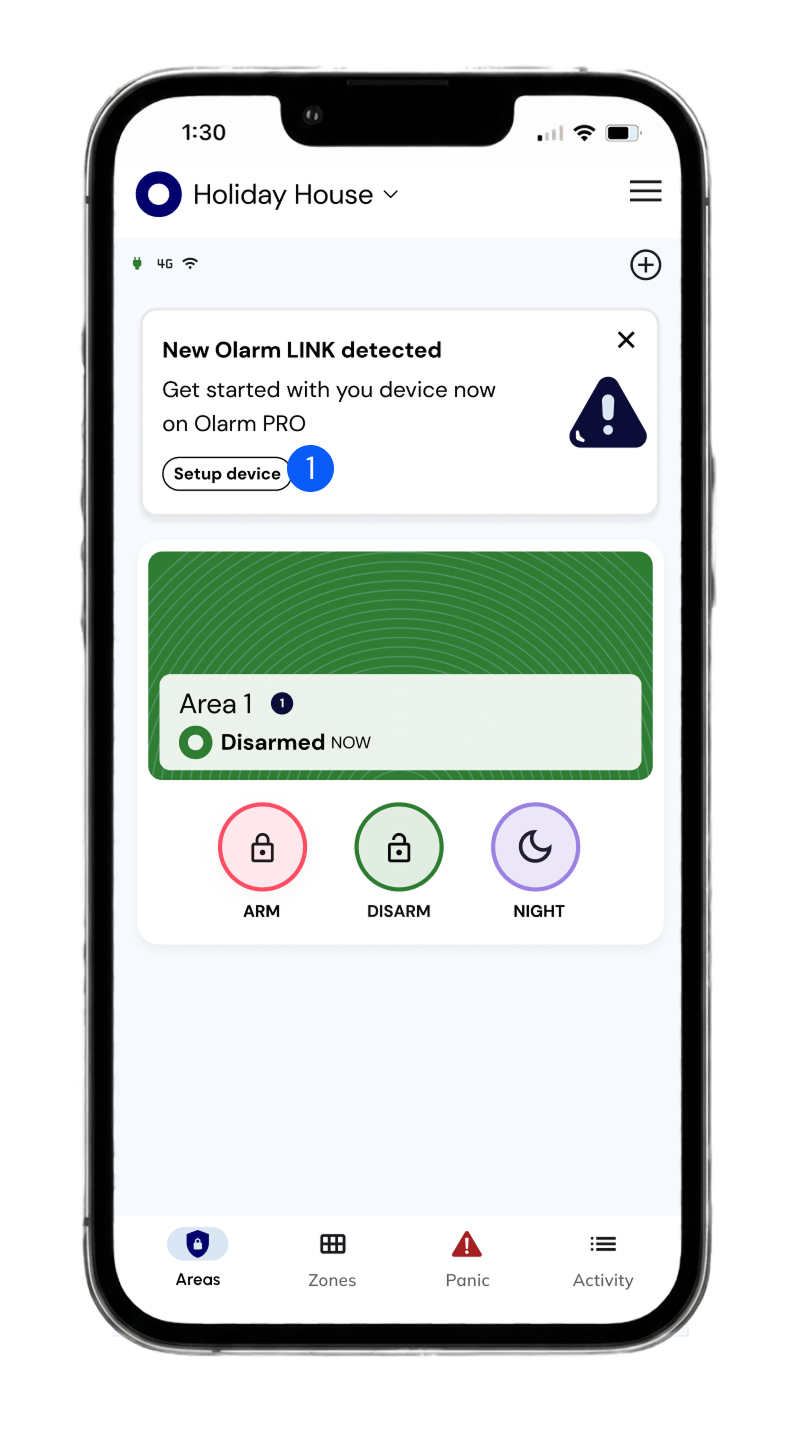

When a new Olarm LINK has been detected by your Olarm communicator, a banner will appear on the home screen.

1. Tap on Olarm LINK setup

1. Under Connected peripherals, tap on your Olarm LINK to begin setup

1. At Olarm LINK name, enter your preferred display name [eg. Outdoor controls]
2. Select the port used for the peripheral

Configuring an IO as an Output

1. Select the IO port

1. At Port name, enter your preferred display name [eg. Gate]
2. Open Settings

1. For Port type, select [Output]
2. Under Select mode, for Mode select [Pulse]
3. For Duration, set the Time to [500] and Units [milliseconds]

1. Customise the Button icon and Button colour to your preference
   • Note: Button text is optional
2. For the question “What is this port used for?”, select the [Gate] icon
3. Tap Save

1. Scroll to the top of the screen and enable your port by toggling Disable to [Enable]
2. Tap Home to return to the device home screen

1. ✅  The Output port is now ready

*Note: To set up additional ports, follow the same steps above.
