Texecom Premier Elite
A step-by-step guide to connnecting your device to the Olarm MAX

Supported systems
For Olarm PRO installation guides, visit our knowledge base
📦 What's in the box
- Olarm MAX
- Internal Power Supply Lid
- Super Capacitor With A JST Connecter *Model Dependent
- 4x Wall Plugs & Screws
- 2x Enclosure Locking Key
- Reversible Peripheral Cable
🛠️ Installation tools required
- Drill with a 5mm bit
- Phillips-head screwdriver
- Flat-head screwdriver
- Wire stripper or side cutters
- Cable for peripheral wiring (4 Core or 6 Core Comms Cable, 2 core Twin Flex or Ripcord)
Programming the Texecom Premier Elite Alarm System
- Enter the Engineers code (default ‘1234’)
- If it says a user needs to grant you access, enter a user code and then retry.
- Press the ‘Down’ Key until you reach “UDL/Digi Options”, press yes/tick
- Press the ‘Down’ Key until you reach “UDL Options”, press yes/tick
- Press the ‘Down’ Key until you reach “UDL Password is:”
- Press the ‘no/cross’ to edit it, enter your relevant UDL password then press 'yes/tick'
- Press the ‘Menu’ key once.
- Continue to press the ‘Down’ Key until you reach “Com Port Setup:”, press yes/tick
- Press the ‘Down’ Key until you reach “Com Port 1”, and press no/cross
- Note: If Com Port 1 is in use already, simply select Com Port 2
- Press the ‘Down’ Key until you reach “SmartCom”, press yes/tick
- Press ‘Menu’ until asked if you want to “Exit and Logoff”, ‘press yes/tick'
ATS Fault Programming (if required)
- Enter the Engineers code (default ‘1234’)
- If it say a user needs to grand you access, enter a user code and then retry.
- Press the ‘Down’ Key until you reach “Global options”, press yes/tick
- Press the ‘Down’ Key until you reach “Monitor hardware”, press no/cross to edit
- Press the ‘1' to enable the first ‘*’ which is changes it to a 'P’ and press yes/tick
- Note: ATS Faults may already be enabled based on your region
- Press 'Menu' until asked if you want to Exit and Logoff, press yes/tick
Connecting the Olarm Max
Before connecting the Olarm MAX, ensure that you power down your alarm system.
Cut and strip the 4-pin side of the reversible peripheral cable. Wire the stripped end of the peripheral cable into the terminals found on the back of the Olarm MAX.
Plug the 5-pin side of the peripheral cable to the programmed Com Port on your Texecom Premier Elite Alarm System.
ATS Fault Monitoring (if required)
Should your installation require ATS Fault Monitoring. Connect a wire from IO Port 1 on the Olarm MAX to the L/M (Line Monitoring) terminal on the Texecom Premier Elite Alarm System. Additionally, use a 4k7 resistor from the DC+ terminal to pull up the L/M terminal.
See the diagram below for visual reference:

LED States of the Olarm MAX
Power up your Alarm System and Olarm MAX while making reference to the table below for an understanding of the device’s LED states:

Add the Olarm MAX to the Olarm APP
There are two methods to add the device to the app. Follow the steps below:
Method 1: QR Code
In the Olarm APP, tap on “Add Device”
Select “Scan QR Code”
You will find the unique QR code on the back of the device beneath the internal power supply compartment. Scan the QR code and follow the prompts.
Method 2: Manually add device
In the Olarm APP, tap on “Add Device”
Select “Enter Serial”
You will find the unique serial number on the back of the device beneath the internal power supply compartment. Enter the serial number in the Olarm APP.
Enter the “V.Code” also found on the back of the device below the serial number and follow the prompts.

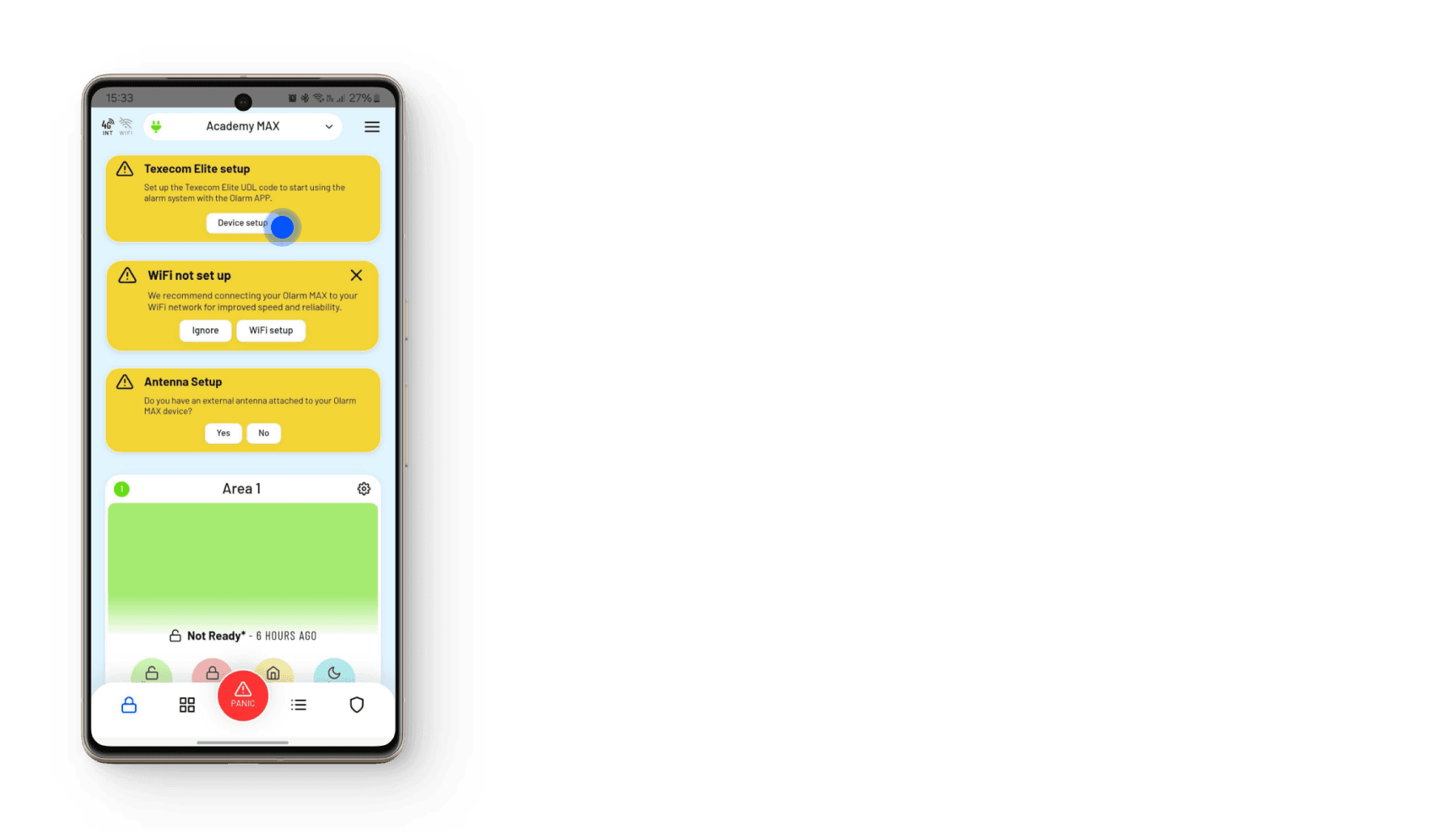

Enter the UDL code in the Olarm APP
Note: To enable app functionality, you will be prompted to enter the UDL code in the Olarm APP. The UDL code entered needs to match what was programmed on the alarm system.

Connect your device to WiFi
There are two methods to get the Olarm MAX connected to your WiFi network, follow the steps below:
Method 1: In-App Prompt

Method 2: WPS Mode
Press the “FN” button found on the back of the Olarm MAX near the screw terminals
- This will put the device in WPS Mode for around 3 minutes
- On the WiFi router of the network you are wanting to connect to, press the WPS button
- The Olarm MAX will automatically pair with the WiFi network

Note: The Olarm MAX only supports 2.4GHz Wi-Fi
In-App IO Port Configuration for ATS Fault Monitoring (if required)
Follow the in-app steps below to configure the Olarm MAX’s IO Port for ATS Fault Monitoring:





Troubleshooting for Texecom Premier Elite
Should your Olarm APP not be able to arm or disarm. Check that “Remote Arm” & “Remote Disarm” has been enabled for all areas. See the programming steps below:
- Enter the Engineers code (default ‘1234’)
- If it says a user needs to grant you access, enter a user code and then retry.
- Press the ‘Down’ Key until you reach “Area Programming”, press yes/tick
- Press the ‘Down’ Key until you reach “Area Options”, press yes/tick
- Press the ‘Down’ Key until you reach “Remote Disarm”, press no/cross to edit
- Press 1 to enable remote arming for Partition 1
- Press 2 to enable remote arming for Partition 2
- Continue enabling remote disarming to suit your installation & press tick/yes
- Press the ‘Down’ Key until you reach “Remote Arm”, press no/cross to edit
- Press 1 to enable remote arming for Partition 1
- Press 2 to enable remote arming for Partition 2
- Continue enabling remote arming to suit your installation & press tick/yes
- Press ‘Menu’ until asked if you want to Exit and Logoff, press yes/tick
Troubleshooting LED states
Red
Check the connection between your Olarm MAX and the alarm system which includes wiring, using the correct ComPort or Serial Port, programming and entering the UDL or Master code in the Olarm APP.
Orange
Ensure your Olarm MAX is installed in an area with adequate signal strength. Alternatively, connect the device to Wi-Fi through its WPS capability.
Red & orange
Troubleshoot everything mentioned above.
Three blue flashes
Relocate the device to an area with better GSM/LTE signal strength. Alternatively, ensure there are no other peripherals nearby that could be interfering with the devices connectivity.
Two blue flashes
The Olarm MAX has lost Wi-Fi connectivity. Connect the device to Wi-Fi through one of the two methods. Ensure your device is in-range of the Wi-Fi network.
Mounting the Olarm MAX
Follow the diagrams below to mount the Olarm MAX.
Using the screws and wall plugs provided, mount the backplate to the flat surface as shown in the diagram below.

Place the Olarm MAX flat against the mounted backplate and slide the enclosure down to click into place

Using the locking key, apply force to insert the mechanism into the key hole until flat against the enclosure, which is indicated by two clicks.

Note
- Do not mount the Olarm MAX inside or against the alarm system enclosure, as this will hinder its connectivity capabilities.
- Do not mount the Olarm MAX near any other communication equipment, as they will inter with each others abilities to transmit signals.
- Utilise a non-metal enclosure should you mount the Olarm MAX outdoors.
- The maximum distance between Olarm MAX and Alarm System is 3 meters.
